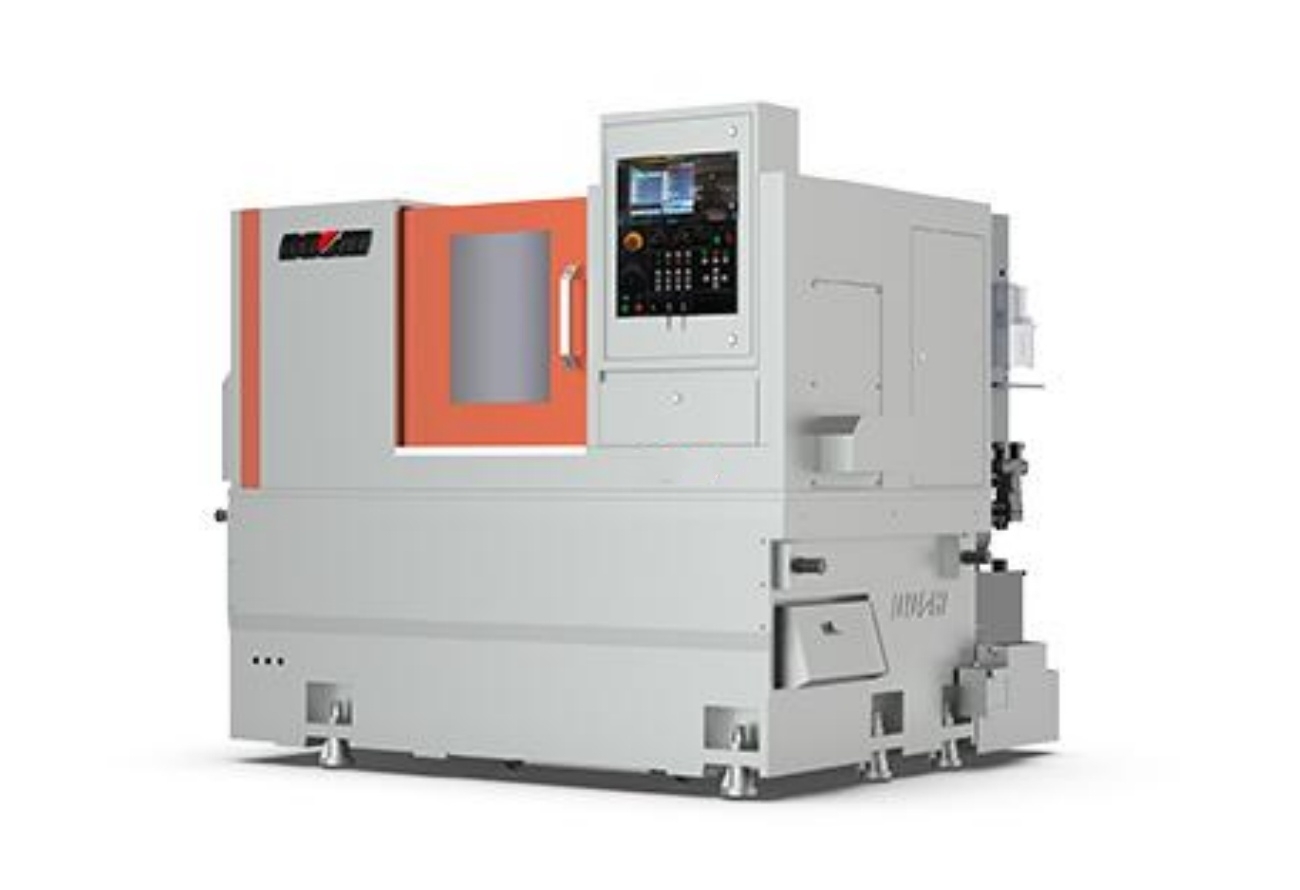

BC3751-HY is a high-performance and multi-function turning centre. The machine has C-axis, Y-axis and milling functions, which can complete most or all of the machining of complex parts under one installation, especially suitable for the machining of parts with complex shapes, and can better adapt to the increasing demand for CNC machine tools with higher functions and precision in chemical, automotive, light industry, machinery and other industries.
|
Item |
Unit |
BC3751-HY Technical Parameters |
|
|
Capacity
|
Max. swing diameter over bed |
mm |
φ550 |
|
Max. swing diameter over slide |
mm |
φ345 |
|
|
Maximum cutting diameter |
mm |
φ320 |
|
|
Max. turning length |
mm |
360 |
|
|
Maximum diameter of the material passing through the bar |
mm |
φ50 |
|
|
spindle
|
Chuck specifications |
inch |
8 "hollow |
|
Spindle nose |
|
A2-6(GB/T5900.1) |
|
|
Car Max.speed of Spindle |
rpm |
50-4500 |
|
|
feed
|
travelX/Z/Y |
mm |
210/410/±30 |
|
Fast moving speed X/Z/Y |
m/min |
30/30/10 |
|
|
turret
|
Turret form |
|
Y-axis power turret |
|
Knife loading capacity |
pcs |
15 |
|
|
Tool size |
mm |
20×20/Ф25 |
|
|
Cut groove width |
mm |
≤3 |
|
|
Power tools
|
Tools format |
|
BMT40-ER20 |
|
Milling Max.speed of Spindle |
rpm |
3800 |
|
|
Maximum installation tool shankdiameter |
mm |
Φ13 |
|
|
Tools motor torque |
Nm |
15 |
|
|
Tailstock
|
Travel of tailstock |
mm |
350 |
|
Top taper sleeve |
mm |
MT No.5 |
|
|
Tailstock format |
|
Hydraulic programmable control |
|
|
other
|
Power capacity |
KVA |
45 |
|
Machine bed layout form |
|
30° |
|
|
Machine tool dimensions （L×W×H） |
mm |
2350 × 2600 × 1900 (including rear chip conveyor)/ 3800 × 1800 × 1900 (including side chip conveyor)/ 2350 × 1800 × 1900 (excluding chip conveyor) |
|
|
Machine tool weight (net weight/gross weight) |
Kg |
4700kg (including chip conveyor)/ 4500kg (excluding chip conveyor) |
