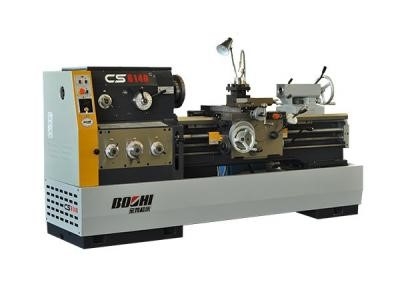

- CS61(2)40/CS61(2)50
-
5 axis compound machining center
-
5 axis machining center
-
Turning center
-
Horizontal CNC lathe
-
Vertical CNC lathe
-
Special propose CNC lathe
-
Economic CNC lathe
-
Conventinal lathe
-
Horizontal machining center
-
Vertical machining center
-
VMC Standard series
-
BV series
-
Overloaded
-
High-precision type
-
-
Gantry machining center
-
Automatic and others
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
|
ITEMS |
UNIT |
CS6140 |
CS6240 |
CS6150 |
CS6250 |
||
|
Capacity |
Max. swing dia. over bed |
mm |
φ400 |
φ500 |
|||
|
Max. swing dia. over toolpost |
mm |
φ220 |
φ300 |
||||
|
Max. swing dia. in gap |
mm |
|
φ630 |
|
φ710 |
||
|
Length in gap |
mm |
|
240 |
|
240 |
||
|
Max. distance between centers |
mm |
1000/1500/2000//3000 |
|||||
|
Max. machining length |
mm |
950/1450/1950/2950 |
|||||
|
Spindle |
Spindle bore diameter |
mm |
φ52 |
||||
|
Taper of spindle bore |
|
MT6 |
|||||
|
Type of spindle nose |
|
ISO 702/Ⅲ No.6 |
|||||
|
Spindle speed |
r/min |
24 steps 9-1600 |
|||||
|
Feed and thread |
Max. travel of upper toolpost |
mm |
145 |
||||
|
Max. travel of lower toolpost |
mm |
320 |
|||||
|
Tool section |
mm |
25×25 |
|||||
|
X-axis feeding range |
mm/r |
93kinds 0.012-2.73 |
|||||
|
Z-axis feeding range |
mm/r |
93kinds 0.028-6.43 |
|||||
|
Metric threads |
mm |
48 kinds 0.5-224 |
|||||
|
Inch threads |
t.p.i |
46 kinds 72-1/8 |
|||||
|
Module threads |
πmm |
42 kinds 0.5-112 |
|||||
|
Diametric pitch threads |
DP |
45kinds 1/4-56 |
|||||
|
Tailstock |
Diameter of quill |
mm |
φ75 |
||||
|
Max. travel of quill |
mm |
150 |
|||||
|
Taper of quill (Morse) |
|
Morse No.5 |
|||||
|
Motor |
Main motor power |
kW |
7.5 |
||||
|
Cooling pump motor power |
kW |
0.15 |
|||||
|
Others |
Length |
mm |
2632/3132/3632/4632 |
||||
|
Width |
mm |
975 |
|||||
|
Height |
mm |
1230 |
1270 |
||||
|
Weight |
kg |
2100/2300/2450/2850 |
|||||
