Item

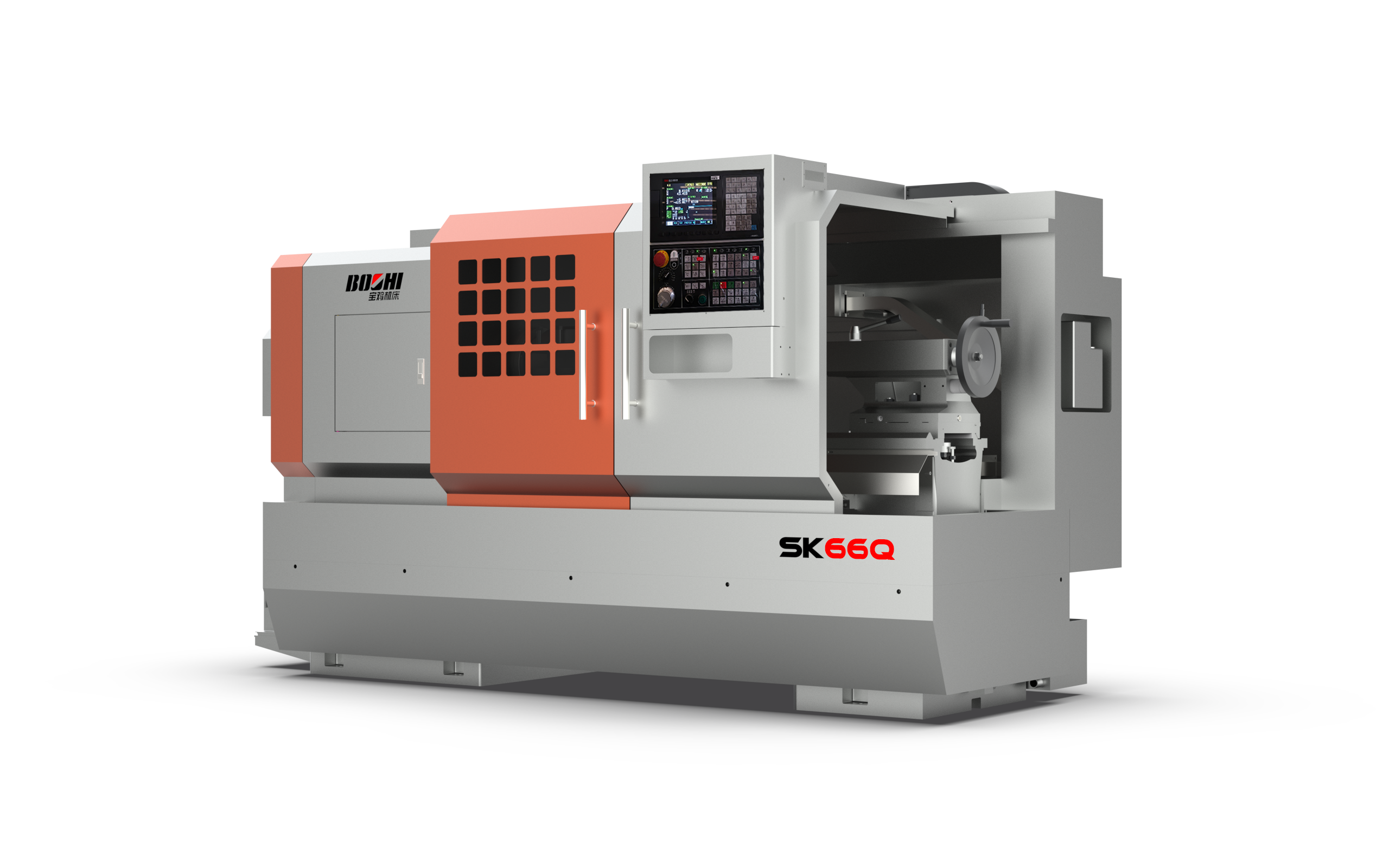

SK66Q

Max. swing over bed (mm)

φ660

Max. swing over slide (mm)

φ440

Max. turning dia. (mm)

φ550/350*

Max. work length (mm)

750/620*; 1000/870*; 1500/1370*; 2000/1870*;

Max. turning length (mm)

570/500*; 820/750*; 1320/1250*;1820/1750*;

Spindle taper hole (mm)

φ77

Spindle nose

ISO702/ⅠA 28

Spindle speed (r/min)

3-gear stepless 21-1620

H:1620-1620 M:66-660 L:21-210

Max. output torque of spindle (N.m)

800

Max. rapid traverse (m/min)

X-axis:6 Z-axis:8 (See OPERATOR’S MANUAL---ELECTRICAL PARTS for details)

Pitch of screw (mm)

X direction: 5 Z direction： 6

Capacity of turret

4(standard)/6(optional)

Max. permissible tool section (mm×mm)

25×25

Travel of turret (mm)

X direction: 275/235（6-station）

Z direction: 600/850/1350/1850

Dia. of tailstock quill (mm)

φ75（φ80 hydraulic tailstock）

Taper of tailstock quill (MT No.)

MT No.5（MT No.3 hydraulic tailstock）

Max. travel of tailstock quill(mm)

150（130 hydraulic tailstock）

Cross travel of tailstock (mm)

±15

Main motor

DP132M-4 7.5Kw frequency inverting motor

Coolant pump

LDPB2-15 180W

V belt

B83(MITSUBOSHI) 4 pcs

Optional: 980T, FANUC 0i-MATE-TD

Note *: data after “/” is for lathe equipped with horizontal 6-station turret (swing dia. of tool disk is assumed φ360).

Note **: data in parentheses is for lathe equipped with hydraulic station.

Dimension (L×W×H)

mm× mm× mm

750

2450×1500×1700

1000

2700×1500×1700

1500

3200×1500×1700

2000

3700×1500×1700

Net weight of machine kg

750

2050

1000

2100

1500

2150

2000

2200

Size of power chuck

8＂/10＂
